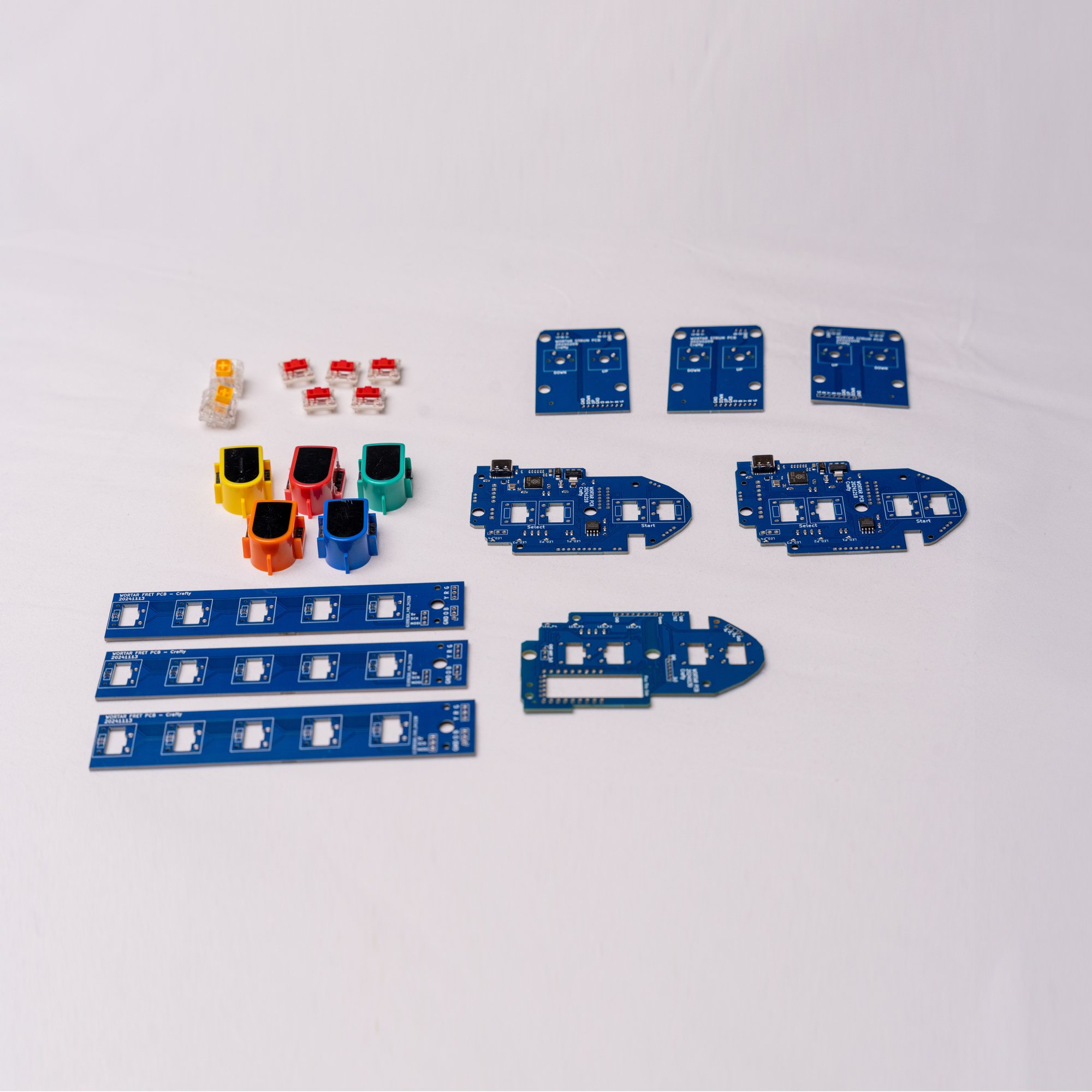

Foxcade WoRtar PCBs

!!WARNING!! Requires soldering: these PCBs come with customer support, but I will NOT replace boards if the install is messed up. Due to the nature of modding WoRtars, it is very easy to mess something up.

The pin headers are for the dpad & ring of light LEDs. They do not have to be hooked up. I do include pinheaders in the package of every mainboard. The whammy and tilt must be calibrated after installing using my Santroller tool on the FAQ page.

By default, the motherboard is flashed wih the PS3 guitar version. If you would like to change it, my Santroller tool is located on my FAQ page.

The strum board is made to fit any MX style switch, commonly Kailh Box Navys or PhunkyCustoms Kailh Box Signal Yellows.

The mainboard and fretboard are made to fit the Kailh Choc Mini's (PG1232) model.
These can be bought from PhunkyCustoms or from another shop.

Low profile right angle USB C extention cable is most likely required, which can be found commonly on Aliexpress. Here is an example of one: USB C female to USB C male 90 degree right angle (CMUP-CF)

Alternatively, I have left pads to solder your own USB Cable to the motherboard.
